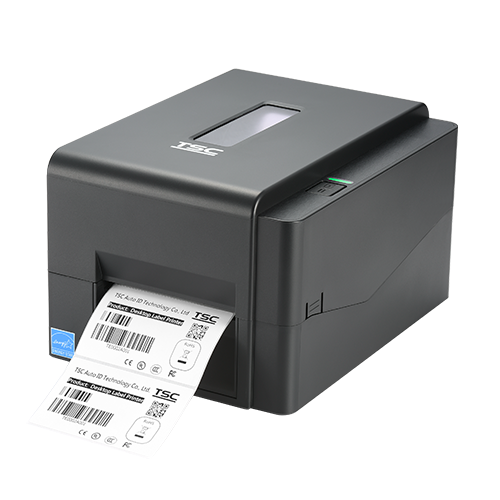

TSC TE210 / TE310 Thermal Barcode Label Printer
TSC TE210 / TE310 Thermal Barcode Label Printer
Durable and versatile desktop barcode printers with Direct Thermal and Thermal Transfer printing. The TE210 offers 203 dpi resolution and speeds up to 6 ips, while the TE310 provides 300 dpi resolution at up to 5 ips, making both models suitable for shipping, retail, warehouse, inventory and product labelling applications.
Description
TSC TE210 / TE310 Thermal Barcode Label Printer
The TSC TE210 and TE310 are versatile and durable entry-level desktop barcode label printers designed to deliver reliable performance at an affordable price. Built for easy operation and long-term use, the TE Series combines fast printing, flexible media handling and professional barcode printing capabilities in a compact desktop design.
The TE210 provides 203 dpi printing at speeds of up to 6 inches per second, while the TE310 delivers 300 dpi resolution at up to 5 inches per second. Both models feature 64 MB SDRAM, 128 MB Flash memory and support Direct Thermal and Thermal Transfer printing.
Product Features
- Available in 203 dpi TE210 and 300 dpi TE310 models
- Direct Thermal and Thermal Transfer printing
- TE210 print speed up to 6 ips / 152 mm per second
- TE310 print speed up to 5 ips / 127 mm per second
- TE210 maximum print width of 4.25 inches / 108 mm
- TE310 maximum print width of 4.16 inches / 105.7 mm
- 64 MB SDRAM
- 128 MB Flash memory
- LED display with buttons
- TSC Console enterprise printer management
- USB connectivity
- Ethernet, Serial RS-232 and USB connectivity on supported models
- USB Host on supported models
- Bluetooth wireless connectivity
- Wi-Fi wireless connectivity on supported models
- Optional guillotine cutter on supported models
- Supports TSPL-EZD programming language
- ABS plastic construction
- Supports ribbons up to 300 meters
- Standard 5-inch / 127 mm OD media capacity
Printer Specifications
| Brand | TSC |
|---|---|
| Series | TE Series |
| Models | TE210 / TE310 |
| Printer Type | Desktop Thermal Barcode Printer |
| TE210 Resolution | 203 dpi / 8 dots per mm |
| TE310 Resolution | 300 dpi / 12 dots per mm |
| Print Method | Direct Thermal / Thermal Transfer |
| Display | LED with Buttons |
| TE210 Maximum Print Speed | 6 ips / 152 mm per second |
| TE310 Maximum Print Speed | 5 ips / 127 mm per second |
| TE210 Maximum Print Width | 4.25 inches / 108 mm |
| TE310 Maximum Print Width | 4.16 inches / 105.7 mm |
| TE210 Maximum Print Length | 1,000 inches / 24,400 mm |
| TE310 Maximum Print Length | 450 inches / 11,430 mm |
| RAM | 64 MB SDRAM |
| Flash Memory | 128 MB |
| Printer Management | TSC Console |
| Programming Language | TSPL-EZD |
Connectivity
| USB | Supported |
|---|---|
| Ethernet | Supported on applicable model/configuration |
| Serial | RS-232 |
| USB Host | Supported on applicable model/configuration |
| Bluetooth | Supported |
| Wi-Fi | Supported on applicable model/configuration |
Media Specifications
| Internal Label Capacity | 5 inches / 127 mm OD |
|---|---|
| Maximum Media Width | 0.8 – 4.4 inches / 20 – 112 mm |
| Media Types | Continuous, Die-Cut, Black Mark, Fan-Fold and Notched |
| Media Winding | Outside Wound |
| Media Core Diameter | 1 – 1.5 inches / 25.4 – 38 mm |
Ribbon Specifications
| Maximum Ribbon Length | 300 Meters |
|---|---|
| Ribbon Width | 1.6 – 4.3 inches / 40 – 110 mm |
| Ribbon Type | Thermal Transfer Ribbon |
Construction & Design
| Construction | ABS Plastic |
|---|---|
| Printer Type | Desktop |

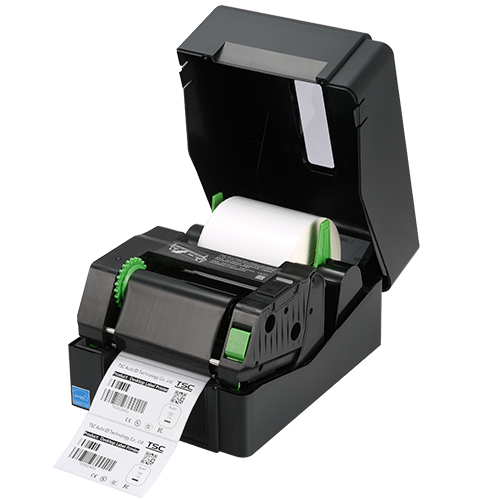

| Print Mechanism | Easy-to-load thermal print mechanism |
| Optional Cutter | Guillotine Cutter – Full Cut and Partial Cut on supported models |
Applications
- Shipping Labels
- Receiving Labels
- Product Identification
- Inventory Control
- Warehouse Labelling
- Item Labels
- Instruction Labels
- Agency Labels
- Patient Identification
- Pharmacy Labelling
- Specimen Identification
- File Folder Labels
- Price Tags
- Shelf Labels
- Jewelry Tags
- Automobile Service Applications
- Walk-in Shipping & Mail Centres
Why Choose the TSC TE210 / TE310?
The TSC TE210 / TE310 series offers a practical combination of performance, durability and flexible media support for everyday barcode and label printing. With Direct Thermal and Thermal Transfer capabilities, fast print speeds, large memory capacity and support for standard 5-inch OD media rolls, the series is suitable for a wide variety of commercial and industrial labelling applications.
The TE Series is designed for low initial cost and cost-effective operation while providing reliable printing performance. The printhead and platen roller can also be changed easily without tools, helping simplify routine maintenance.
Supported Applications
The TE Series can print a wide range of labels including shipping, compliance, product identification, inventory, price, shelf and jewelry labels, making it suitable for retail, logistics, healthcare, manufacturing, warehouses and general business applications.
